DAHUA – Switch Dahua Pfs3106 4Et 60 4 Port Poe Unmanaged

Description

DAHUA – Switch Dahua Pfs3106 4Et 60 4 Port Poe Unmanaged

Brand Name: Dahua

Part Number:?PFS3106 4Et 60

Product Type:?DAHUA – Switch Dahua Pfs3106 4Et 60 4 Port Poe Unmanaged

Specification: Please refer Datasheet on Manufacturer Website

Warranty: Manufacturer Standard Warranty.

Details :

• Eight-Pin assignment PoE power supply
• Intelligent PoE
• Hi-PoE 60 W (Orange Port)
• PoE watchdog
• 250 m long distance PoE transmission
• Wide operating temperature: ?30 ?C to +65 ?C (?22 ?F to +149 ?F)
• Layer two Hardened PoE switch
• Supports PoE power management
• MAC auto learning and aging, MAC address capacity is 8K
• Conforms to IEEE802.3af and IEEE802.3at power supply standard. Port 1 supports Hi-PoE 60W power supply
• Supports IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards
• Wide working temperature design: -30?C~ 65?C
• Supports dual power backup

DH-PFS3106-4ET-60 is a layer two Hardened PoE Switch, which provides 4*10/100Mbps PoE ports, 1*100/1000 Mbps optical port and 1*10/100/1000Mbps Ethernet uplink port. With high level lightning protection and wide working temperature range makes it a better performance in outdoor or harsh environment.

TECHNICAL SPECIFICATION:

• Model – DH-PFS3106-4ET-60
• Ethernet Port

1. 1*100/1000 Base-X
2. 1*10/100/1000 Base-T
3. 4*10/100 Base-T (PoE power supply)

• PoE Power Consumption – Port ?60W, Port2-4?30W, Total?60W
• PoE PIN Assignment – 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
• PoE Power Management – Support
• PoE Protocol – IEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE
• Switching Capacity – 6.8G
• Packet Forwarding Rate – 3.57Mpps
• Packet Buffer Memory – 1Mb
• MAC Table Size – 8K
• Flow Control – Enable by default
• Application Humidity – 5%~95%
• Power – DC 48~57V power adapter
• Lightning Protection:

1. Common Mode 6KV
2. Differential Mode 4KV

• ESD Protection:

1. Air Discharge 15KV
2. Contact Discharge 8KV

• Working Temperature: -30?C~65?C
• Weight – 440g
• Dimension(W?D?H) – 150mm?108mm?30mm

FUNCTIONS:

Rich Port Types

Four 10/100 Mbps Base-T PoE Ethernet ports; one 10/100/1000 Mbps Base-T Ethernet ports; one 100/1000 Mbps Base-X optical port.

Wide Operating Temperature

The device can work in environment temperature ranging from ?30 ?C to +65 ?C (?22 ?F to +149 ?F).

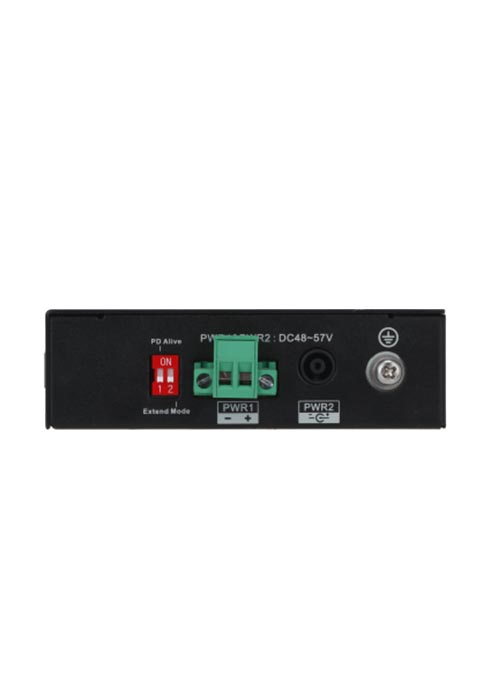

Dual Power Backup

The device supports dual power backup.

Intelligent PoE

The switch features intelligent PoE power consumption management to help keep the power and data flowing, even when the switch experiences a power fault. Intelligent PoE monitors the power

consumption of the connected devices, and in the event of large power fluctuations, the switch shuts down one port at a time rather than shutting down all ports. Unlike typical switches that shut down all ports as once, this switch shuts down the highest number port first, then the

next highest number until the switch detects the power consumption is below the PoE budget.

Hi-PoE 60W

Besides IEEE802.3af and IEEE802.3at, orange port also supports max. 60W output.

PoE Watchdog

The switch employs an innovative PoE watchdog function that automatically detects a network port failure and restarts network communication on the port. This functionality avoids manual maintenance and network restarts, saving time and reducing costs.

Long Distance PoE

Long-distance PoE transmission extends the maximum transmission distance to 250 m (from 100 m), but reduces transmission speed to a maximum of 10 Mbps (from 1000 Mbps).

Eight-PIN Assignment PoE Power Supply

The Eight-PIN Ethernet port supports power supply, to enhance front-end and rear-end compatibility. Reduce cable loss and promote loading capacity.
