HUAWEI – 2*GE combo WAN 8*GE LAN 2*USB 2*SIC

DETAILS:

HUAWEI – 2*GE combo WAN 8*GE LAN 2*USB 2*SIC

DESCRIPTION:

2*GE combo WAN, 8*GE LAN, 2*USB, 2*SIC, up to1200 users, forwarding performance 6Gbps

Basic Information

Part Number: 02354GBG-001

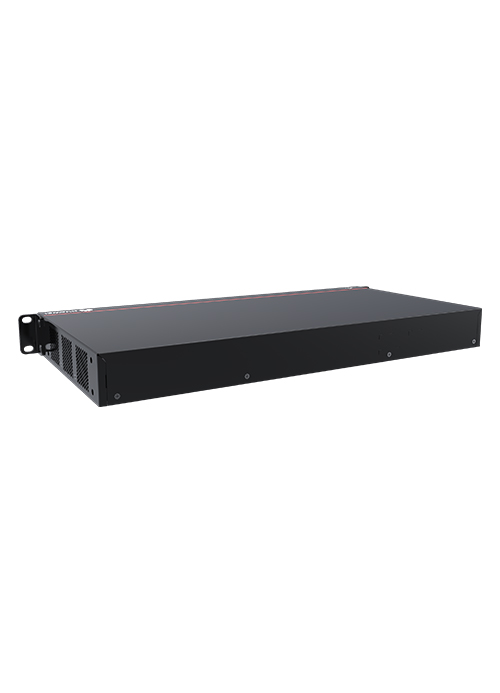

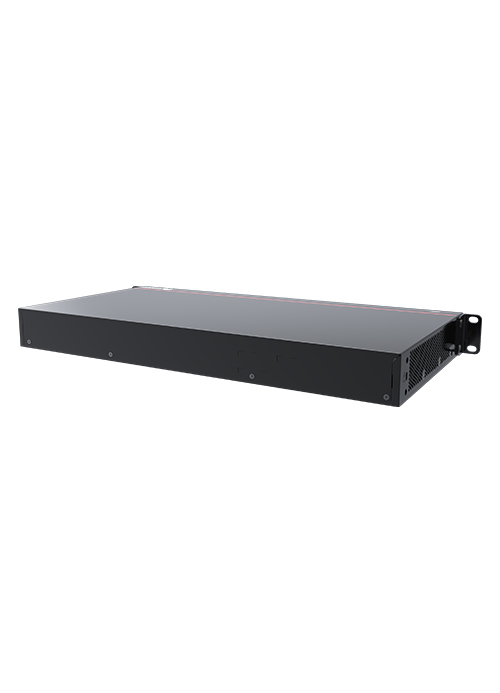

Model: AR720

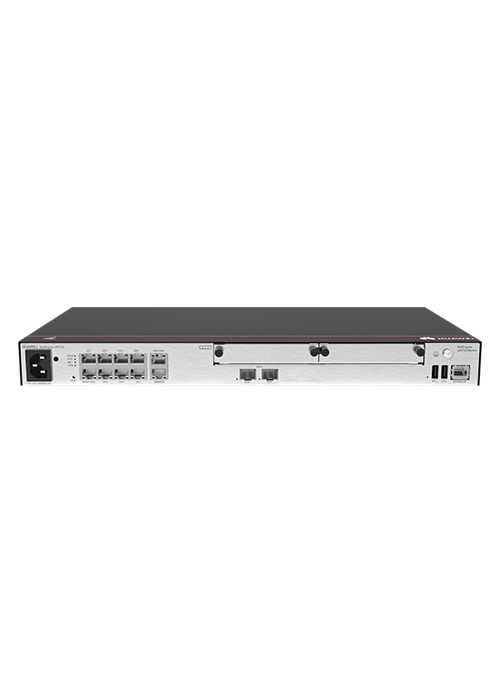

Description: AR720, 2*GE combo WAN, 8*GE LAN, 2*USB 2.0, 2*SIC

First supported version: V300R022C00

Technical Specifications

Remarks: When configuring cards, ensure that the total power of the configured cards does not exceed 37 W or contact technical support engineers to obtain more suggestions.

The routers manufactured after March 31, 2023 support only V300R022C10 and later versions.

Height [mm]: 44.4 mm

Depth [mm]: 220.4 mm

Wide [mm]: 442.0 mm

Chassis height [U]: 1

Weight with packaging [kg(lb)]: 4.6 (10.12)

Weight without packaging [kg(lb)]: 3.2 (7.04)

Maximum power consumption [W]: 33

Power supply mode; AC built-in

Input voltage range [V]: 90 V to 264 V, 47 Hz to 63 Hz

Rated input voltage [V]: 100 V to 240 V, 50 Hz/60 Hz

Maximum input current [A]: 2

Number of service board slots: 2

CPU: 1.4 GHz, 4 Cores

Memory: 4 GB

Redundant power supply: Not supported

Number of power modules: 1

Number of fan modules : 0

Noise at normal temperature (acoustic power) [dB(A)]: 52.3 dB(A)

Airflow direction: Left to right

Heat dissipation mode: Air cooling

Storage temperature [°C(°F)]: -40°C to +70°C (-40°F to +158°F)

Long-term operating temperature [°C(°F)]: 0°C to 45°C (32°F to 113°F)

Note: When the altitude is 1800 m-5000 m (5906 ft.-16404.2 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Long-term operating relative humidity [RH]: 5% to 95%, noncondensing

Long-term operating altitude [m(ft.)]: < 5000 m (16404.2 ft.)

MTBF [year]: 30.05

MTTR [hour]: 2

Availability: 0.9999924012

Maximum number of GE ports: 10

Maximum number of 10GE ports: 1

RTC: Supported

RPS input: Not supported

PoE: Not supported
