Description

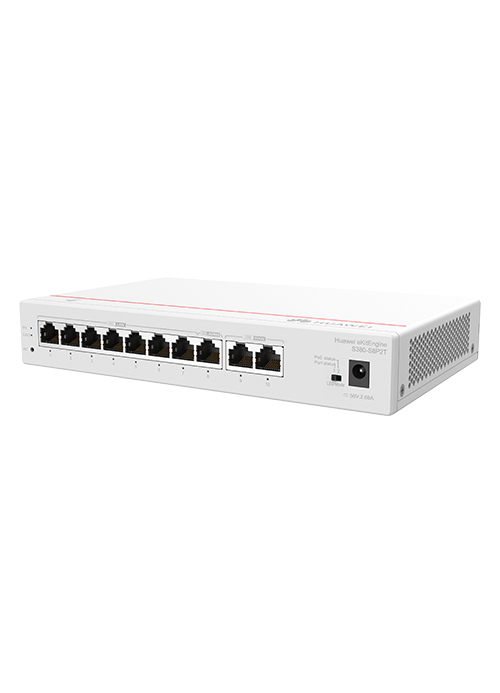

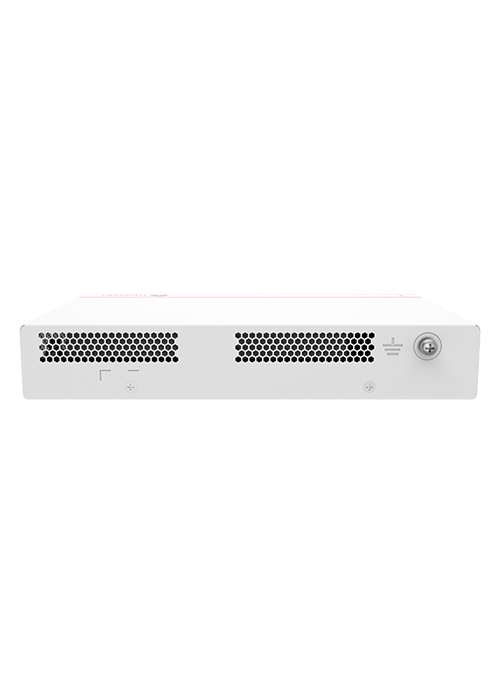

HUAWEI – 2*GE WAN 8*GE LAN (PoE+ 124W)

DETAILS:

HUAWEI – 2*GE WAN 8*GE LAN (PoE+ 124W)

DESCRIPTION:

2*GE WAN 8*GE LAN (PoE+ 124W) up to 350 users, forwarding performance 2Gbps

Basic Information

Part Number: 98012180

Model: S380-S8P2T

Description: S380-S8P2T, 2*GE WAN, 8*GE LAN (PoE+, 124W)

Technical Specifications

Chassis material: Metal

Height [mm]: 35.0 mm

Depth [mm]: 130.0 mm

Wide [mm]: 210.0 mm

Chassis height [U]: 0.8

Weight without packaging [kg(lb)]: 1.5 (3.31)

Weight with packaging [kg(lb)]: 1.8 (3.97)

Typical power consumption [W]: 12.4

Maximum power consumption [W]: 145.8 W (PoE: 124 W)

Heat dissipation mode: Natural heat dissipation

Typical heat dissipation [BTU/hour]: 42.3

Maximum heat dissipation [BTU/hour]: 497.5

Power supply mode: Power adapter

Input voltage range [V]: Power adapter input: 90–290 V AC; 47–63 Hz

Rated input voltage [V]: Power adapter input: 100–240 V AC; 50/60 Hz

Power adapter output: 56 V DC: Maximum input current [A]: 2.68 A

Number of card slots: 0

Number of power slots: 0

Memory: DDR4: 512 MB

Flash memory: NAND Flash: 512 MB

Redundant power supply: Not supported

Types of fans: None

Noise at normal temperature (acoustic power) [dB(A)]: Noise-free (no fans), < 30

Noise at normal temperature (acoustic pressure) [dB(A)]: Noise-free (no fans), < 20

Airflow direction: –

Long-term operating temperature [°C(°F)]: 0°C to 40°C (32°F to 104°F) at an altitude of 0-1800 m (0-5906 ft.)

Storage temperature [°C(°F)]: –40°C to +70°C (–40°F to +158°F)

Long-term operating relative humidity [RH]: 5% RH to 95% RH (non-condensing)

Long-term operating altitude [m(ft.)]: 0–5000 m (0–16404 ft.)

Storage altitude [m(ft.)]: 0-5000 m (0-16404 ft.)

MTBF [year]: 65.36

MTTR [hour]: 2

Availability: > 0.99999

Maximum number of physical ports on the entire device: 10

Downlink ports: 8 x GE LAN (124 W PoE+)

Uplink ports: 2 x GE WAN

USB: Not supported

Console port: Not supported

Eth Management port: LAN port

Service port surge protection [kV]: Common mode: ±4 kV

Power supply surge protection: Power adapter: ±6 kV in differential mode and ±6 kV in common mode

RPS input: Not supported

PoE: Supported
