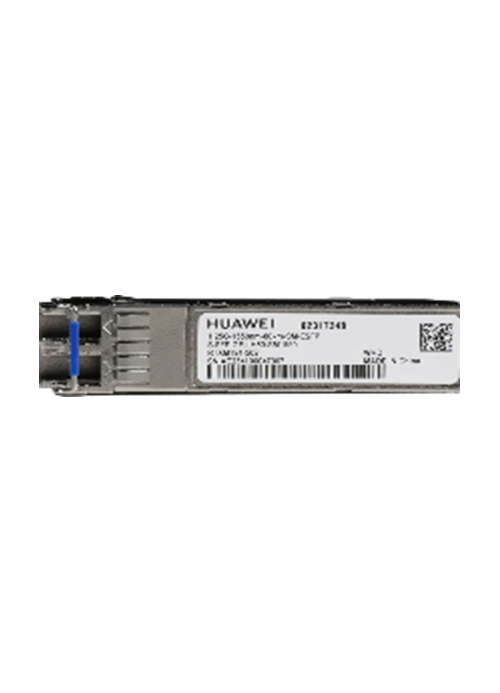

Huawei – SFP-GE-BX-U1-I 1000BASE-BX Single-Mode Fiber Optic Transceiver Module

DETAILS:

Huawei – SFP-GE-BX-U1-I 1000BASE-BX Single-Mode Fiber Optic Transceiver Module

SPECIFICATION:

The Huawei SFP-GE-BX-U1-I is a high-performance, compact 1Gbps single-mode fiber optic transceiver module designed for long-haul applications. This module complies with the 1000BASE-BX standard and supports single-fiber bidirectional (BIDI) transmission.

Key Features

• 1Gbps transmission rate for demanding network applications
• Long-haul capability of up to 10 km over single-mode fiber
• Digital Diagnostic Monitoring (DDM) for real-time performance monitoring
• Compact SFP form factor for seamless integration
• Wide operating temperature range of -40°C to +85°C (-40°F to +185°F)
• Single-fiber bidirectional (BIDI) transmission support

Optical Characteristics

Transmitter

• Center wavelength: 1310 nm (TX)
• Maximum Tx optical power: -3 dBm
• Minimum Tx optical power: -9 dBm
• Minimum extinction ratio: 9 dB

Receiver

• Center wavelength: 1490 nm (RX)
• Rx sensitivity: -19.5 dBm
• Overload power: -3 dBm

Technical Specifications

• Module name: SFP-GE-BX-U1-I
• Part Number: 02311DMF
• Application standard: 1000BASE-BX
• Connector type: LC
• Optical fiber type: Single-Mode Fiber (SMF)
• Form factor: SFP
• Transmission rate: 1 Gbit/s
• Target transmission distance: 10 km
• Working case temperature: -40°C to +85°C (-40°F to +185°F)

Important Notes

• Use in pairs with SFP-GE-BX-D1-I for BIDI transmission.
• Compatible with switches running V200R012C00 or later versions.

Ideal Applications

• Telecommunications
• Data centers
• Enterprise networks
• Cloud computing
• Long-haul networking applications

The Huawei SFP-GE-BX-U1-I ensures reliable, high-speed data transmission and performance monitoring, ideal for demanding network environments.
