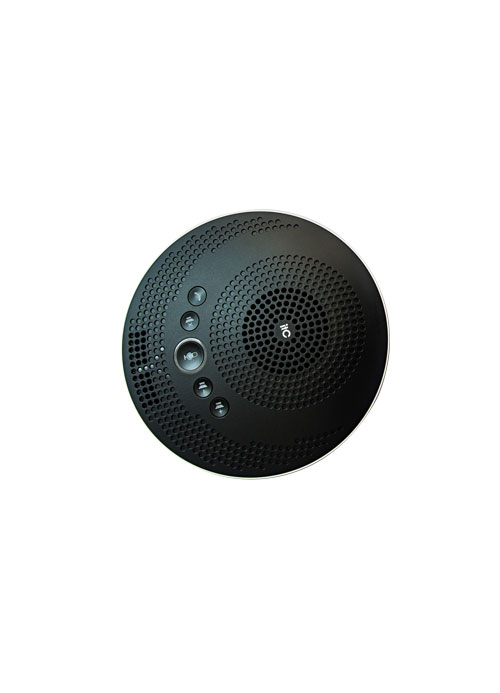

ITC – TS-0663CM Omnidirectional Microphone
Brand Name: | ITC |
Part Number: | TS-0663CM |
Product Type: | ITC – TS-0663CM Omnidirectional Microphone |
Specification: | Please refer to the Datasheet on the Manufacturer’s Datasheet |
Warranty: | Manufacturer Standard Warranty |
Description
ITC – TS-0663CM Omnidirectional Microphone
Details:
ITC – TS-0663CM Omnidirectional Microphone
Description:
High-sensitivity omnidirectional condenser microphone, omnidirectional pickup, clear and natural sound.
Suitable for audio collection and recording in teaching, conferences and other places.
Features:
- Built-in dedicated digital audio signal processor to effectively prevent voice signal distortion and attenuation.
- With 4-channel 3.5mm audio input interface, including teaching courseware input, wireless microphone input, musical instrument input, and recording and broadcasting input.
- With 3-channel 3.5mm audio output interfaces, including recording monitoring, line output, and recording and broadcasting output.
- With 1 microphone cascade interface, support connecting an expansion microphone to expand the sound pickup range.
- With 1-way RS485 interface, support the host computer software debugging function.
- Support 5-band EQ adjustment function, which can adjust the sound field effect according to the sound environment of the installation site.
- Support audio adjustment function to realize input and output mute, volume, AGC, low-frequency filtering, noise reduction, output limiting, etc. control functions.
- Support anti-reverberation function, the sound is clear and natural, not turbid.
- Support parameter query, parameter configuration, parameter saving, parameter download, factory reset, help and other functions.
Specification:
color | White |
shell material | Metal |
Pickup range | 360° omnidirectional sound pickup, with a sound pickup radius of up to 5 meters |
Sensitivity level | -34dB |
Frequency response | 100Hz~24KHz |
Dynamic Range | 84dB(1KHz at Max dB SPL) |
SNR | 68dB |
MAXÂ SPL | 110dB |
Output impedance | Maximum 100 ohms unbalanced |
Output signal amplitude | 2.5Vpp/89dBSPL (A-weighted @1KHz) |
Remote echo cancellation | Echo delay ability: ≤256ms, echo suppression ratio: >60dB |
Ambient noise cancellation | Noise reduction range: 0~40dB optional |
AGC | Gain range: -24dB~-5.5dB |
Working temperature | -40℃~70℃ |
Working power supply | AC 100V~240V 50/60Hz 0.2A,DC 12V 410mA |
Power consumption | 1.8W |
Dimensions | 120*120*30mm |
Weight | 0.16kg |
