Description

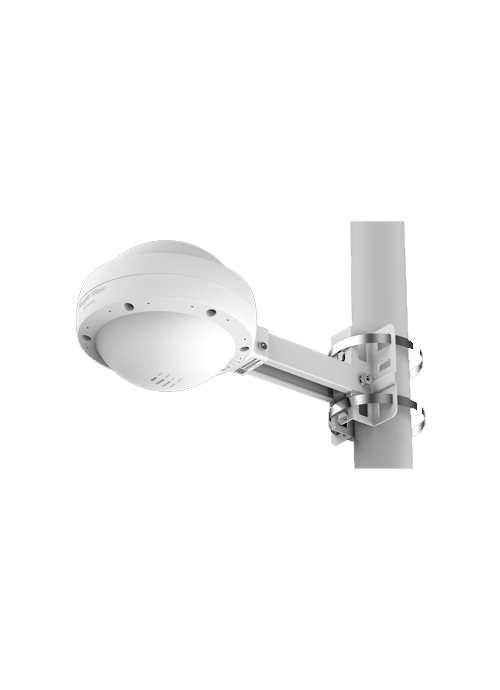

Ruijie – RG-EAP602 AC1200 Dual Band Gigabit Outdoor Access Point

Details:

Ruijie – RG-EAP602 AC1200 Dual Band Gigabit Outdoor Access Point

Specification:

Model: RG-EAP602

Radio: 2.4GHz & 5GHz dual-band dual-stream

Protocol: 2.4GHz: 802.11 b/g/n；5GHz: 802.11a/b/g/n/ac

Spatial Streams: 2.4GHz: 2 Spatial Streams, 2×2 MIMO

5GHz: 2 Spatial Streams, 2×2 MIMO

Max Throughput: 2.4GHz: 300Mbps 5GHz: 867Mbps Up to 1167Mbps per AP

Transmit Power: ≤500mw（27dBm，RF transmit power only）

Dimensions: 200mm*220mm*166mm (excluding mounting kits)

Weight: 1kg (excluding mounting kits)

Service Ports: 2 10/100/1000Mbps Ethernet ports（one of which supports 802.3af/at PoE 1 reset button

Reset: 1 DC 12V power socket

LED Indicators: Wi-Fi indicator, warning indicator, LAN1 connection indicator, LAN2 connection indicator

Power Supply: 802.3af / 802.3at DC 12V 1.5A

Built-in Antennas: Built-in omnidirectional antennas (basic gain 3dBi)

Power Consumption: ＜12.95W

Coverage Radius: Open and unobstructed direction: 2.4G 100m，5G 300m（the actual coverage distance may vary according to different obstruction situations and different performances of wireless terminals）

Surge Protection: 6000V IP Rating: Above IP68

Environment: Operating temperature: -30°C～65°C

Storage temperature: -40°C～85°C

Operating humidity: 0%～100% (non-condensing)

Storage humidity: 0%～100% (non-condensing) MTBF >250000H

Software Features:

WLAN: Maximum number of clients: 164

Recommended number of clients: 96

Up to 8 SSIDs

Support SSID hiding Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID

SSID-based and radio-based STA limit

Support Layer 2 user isolation

Security: Support PSK authentication

Support static blacklist and whitelist

Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption

Routing: Support static IP address and DHCP

Management and maintenance: Support local or remote management with app

Highlight：

• 802.11ac Wave2 technology
• 300m coverage radius
• Lifetime free Ruijie Cloud management: Remote fault alarm, one-click optimizing and maintenance on Ruijie Cloud App;
• Stable wireless service under harsh environment： Surge Protection 6KV | IP Rating IP68 | Operating temperature: -30°C～65°C
• Industrial Design
