Description

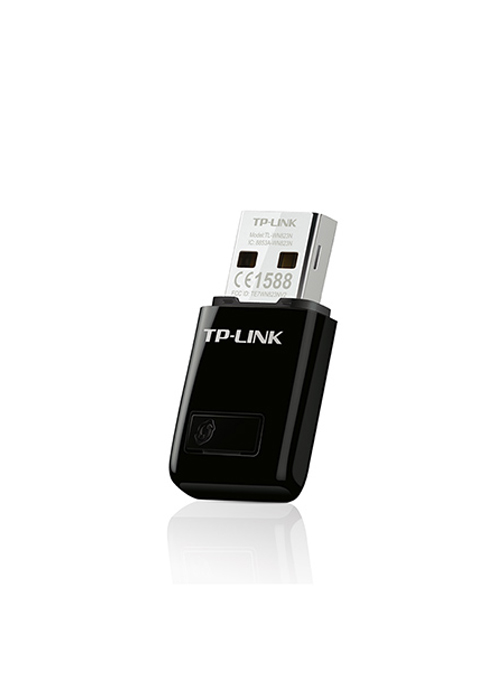

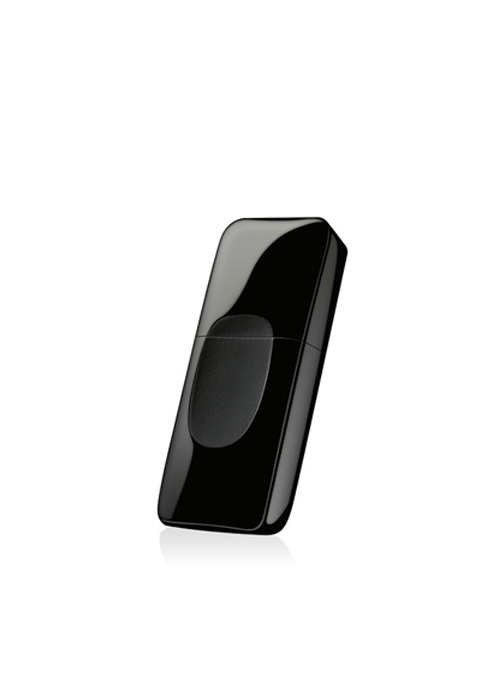

TP-Link – 300Mbps Mini Wireless N USB Adapter

DETAILS:

TP-Link – 300Mbps Mini Wireless N USB Adapter

SPECIFICATION:

• 300Mbps wireless speed ideal for smooth HD video, voice streaming and online gaming*
• Mini-sized design for convenient portability with a reliable high performance
• SoftAP Mode ? Turn a wired internet connection to a PC or Laptop into a Wi-Fi hotspot
• Easily setup a secure wireless connection with one-touch WPS button

What This Product Does

TP-LINK’s 300Mbps Mini Wireless N USB Adapter TL-WN823N is designed to connect your laptop or desktop to a wireless network and enjoy high speed wireless performance. The fingertip design makes the adapter convenient and easy to carry around. What?s more, the TL-WN823N features SoftAP Mode, one-button security setup, easy-to-use configuration software, making it a great choice for enjoying fast wireless network.

300Mbps Wireless N Speed ? Extend Wireless Coverage

With wireless speeds of up to 300Mbps and advanced MIMO technology, the TL-WN823N provides you with a fast, reliable wireless connection for lag-free online gaming and video streaming. Better still, TL-WN823N achieves the best performance with wireless N devices, but also works seamlessly with existing IEEE 802.11b/g networks.

FEATURES:

HARDWARE FEATURES

• Interface: USB 2.0
• Button: Wi-Fi Protected Setup (WPS) Button
• Dimensions( W x D x H ): 1.54 x 0.72 x 0.31 in. (39 x 18.35 x 7.87mm)
• Antenna Type: Internal

WIRELESS FEATURES

• Wireless Standards: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
• Frequency: 2.400~2.4835GHz

Signal Rate:

1. 11b: Up to 11Mbps(dynamic)
2. 11g: Up to 54Mbps(dynamic)
3. 11n: Up to 300Mbps(dynamic)

Reception Sensitivity:

1. 300M: -65dBm@10% PER
2. 270M: -65dBm@10% PER
3. 130M: -68dBm@10% PER
4. 108M: -68dBm@10% PER
5. 54M: -72dBm@10% PER
6. 11M: -85dBm@8% PER
7. 6M: -87dBm@10% PER
8. 1M:-93dBm@8% PER

• Transmit Power:? <20dBm (EIRP)
• Wireless Modes: Soft AP Mode
• Client Mode: (support Ad-hoc/Infrastructure network)

Wireless Security:

• 64/128-bit WEP
• WPA-PSK /WPA2-PSK
• WPA / WPA2

Modulation Technology: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM

OTHERS

Certification: FCC, IC, RoHS

Package Contents:

1. Wireless Adapter TL-WN823N
2. Resource CD
3. Quick Installation Guide

System Requirements:

1. Windows 11/10/8.1/8/7/XP (32/64bits),
2. Mac OS X 10.9~10.13, Linux 2.6.24~4.9.60

Environment:

1. Operating Temperature: 0?~40? (32?~104?)
2. Storage Temperature: -40?~70? (-40?~158?)
3. Operating Humidity: 10%~90% non-condensing
4. Storage Humidity: 5%~90% non-condensing
