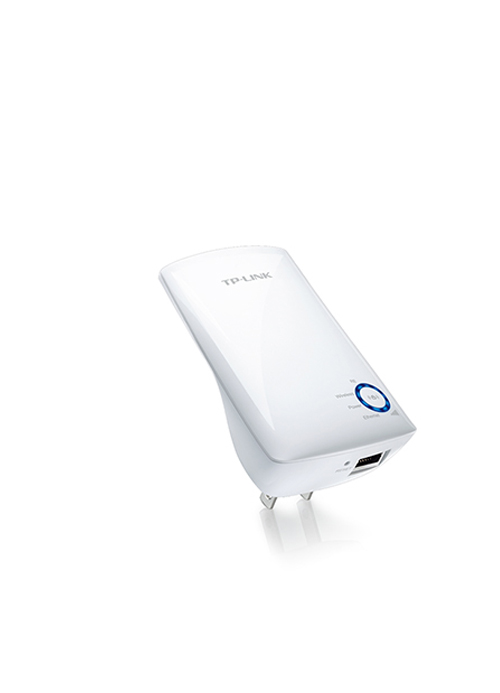

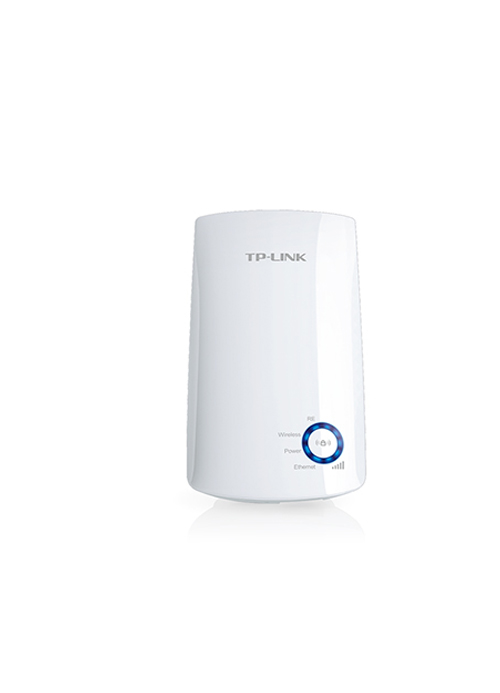

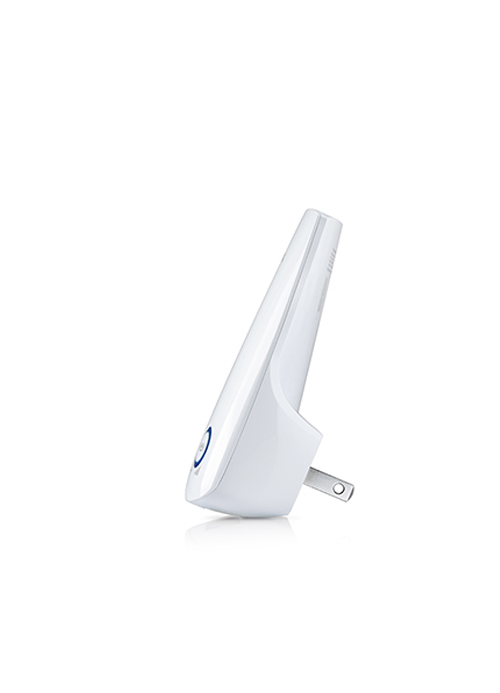

TP-Link – 300Mbps Universal Wi-Fi Range Extender

DETAILS:

TP-Link – 300Mbps Universal Wi-Fi Range Extender

FEATURES:

• Range Extender mode boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly*
• Miniature size and wall-mounted design make it easy to deploy and move flexibly
• Easily expand wireless coverage at a push of Range Extender button*
• Ethernet port allows the Extender to function as a wireless adapter to connect wired devices
• Tether App allows easy access and management using any mobile device
• LED Control function includes a Night Mode for peaceful sleep

Boost Your Wireless Network:

Tired of Wi-Fi ??dead zone??? TP-LINK?s range extender connects to your router wirelessly, strengthening and expanding its signal into areas it can?t on its own. The device also reduces signal interference to ensure reliable Wi-Fi coverage throughout your home or office.

Easy Setup and Flexible:

PlacementPress the WPS button on your router and the Range Extender button on your 850RE within minutes to easily connect to the network. Once connected with an existing router, you can simply unplug and plug the TL-WA850RE back in a location for the best signal quality and coverage in your house, without needing to configure the extender again.

Ethernet Bridge

The TL-WA850RE?s single Ethernet port allows the Extender to function as a wireless adapter to connect wired devices like Blu-ray? players, gaming consoles, DVRs and Internet TVs. At the same time, the device can share the wireless network as well.

Smart Signal Indicator Light

5 signal lights show the strength of signal that TL-WA850RE receives from the existing router, which can help to find the right location to place the range extender. It?s recommended that you choose a location where at least 3 signal light blue in order to guarantee a good performance.

SPECIFICATIONS:

HARDWARE FEATURES

• Plug Type: EU, UK, US
• Interface: 1 * 10/100M Ethernet Port (RJ45)
• Button: RE (Range Extender) Button, Reset Button
• Power Consumption: About 3W
• Wireless Standards: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
• Dimensions ( W x D x H ): 4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm)
• Antenna:? 2 * internal

WIRELESS FEATURES

Frequency: 2.4~2.4835GHz

Signal Rate:

1. 11n: Up to 300Mbps (dynamic)
2. 11g: Up to 54Mbps (dynamic)
3. 11b: Up to 11Mbps (dynamic)

Reception Sensitivity

1. 270M: -68dBm@10% PER
2. 130M: -68dBm@10% PER
3. 108M: -68dBm@10% PER
4. 54M: -68dBm@10% PER
5. 11M: -85dBm@8% PER
6. 6M: -88dBm@10% PER
7. 1M: -90dBm@8% PER

Transmit Power: < 20 dBm (EIRP)

Wireless Modes: Range Extender

Wireless Functions:

1. WMM (Wi-Fi Multimedia)
2. Wireless MAC Address Filtering
3. Wireless Statistic
4. Domain Login Function

Wireless Security:

1. 64/128/152-bit WEP
2. WPA-PSK /
3. WPA2-PSK

OTHERS

Certification: RoHS

Package Contents:

1. 300Mbps Universal Wi-Fi Range Extender TL-WA850RE
2. RJ-45 Ethernet Cable
3. Resource CD
4. Quick Installation Guide

System Requirements: Microsoft? Windows? 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac? OS, NetWare?, UNIX? or Linux.

Environment:

1. Operating Temperature: 0?C~40?C (32?F~104?F)
2. Storage Temperature: -40?C~70?C (-40?F~158?F)
3. Operating Humidity: 10%~90% non-condensing
4. Storage Humidity: 5%~90% non-condensing
