TP-Link TL-WA860RE 300Mbps Wireless N Wall Plugged Range Extender with AC Passthrough

Description

TP-Link – 300Mbps Wireless N Wall Plugged Range Extender with AC Passthrough

DETAILS:

TP-Link – ?300Mbps Wireless N Wall Plugged Range Extender with AC Passthrough

FEATURES:

• Range Extender mode boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly
• Miniature size and wall-mounted design make it easy to deploy and move flexibly
• Extra power socket making sure that no power outlet is going to waste
• 2 fixed external antennas provide excellent Wi-Fi coverage and reliability
• Easily expand wireless coverage at a push of Range Extender button

One Button Super Wi-Fi Range Extension:

The TL-WA860RE wall-mounted is designed to conveniently extend the coverage and improve the signal strength of your wireless network. With 300Mbps wireless N speeds, TL-WA860RE turns your ?dead zones? into connected zones, helping you keep mobile devices, media players and computers connected to Wi-Fi with a reliable connection.

Flexible Placement & Extra Power Socket:

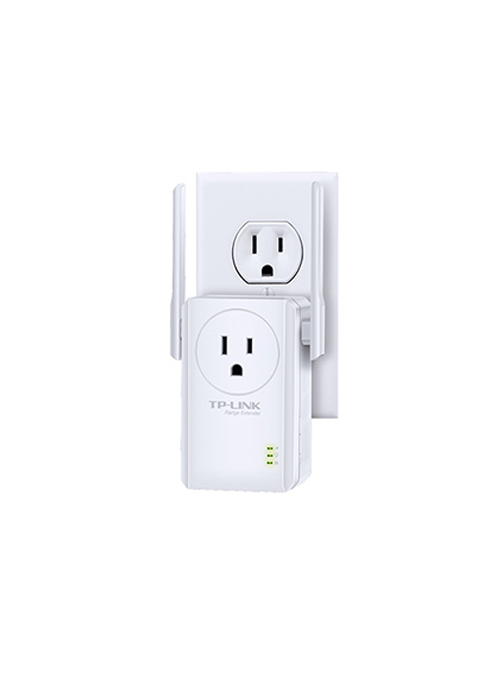

The TL-WA860RE’s miniature size and wall-mounted design make it easy to deploy and move flexibly. Once connected with an existing router, you can simply unplug and plug the Range Extender back in anywhere without the need to configure it again. Moreover, its integrated power socket ensures that no power outlet goes to waste.

SPECIFICATION:

HARDWARE FEATURES

• Plug Type: EU, UK, US
• Standards and Protocols: IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
• Interface: 1 * 10/100Mbps Ethernet Port (RJ45)
• Button: RE (Range Extender) Button, Reset Button
• Power Consumption:? About 3W
• Dimensions ( W x D x H ): 4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm)
• Antenna: 2 * external

WIRELESS FEATURES

Frequency:? 2.4~2.4835GHz

Signal Rate:

1. 11n: Up to 300Mbps (dynamic)
2. 11g: Up to 54Mbps (dynamic)
3. 11b: Up to 11Mbps (dynamic)

Reception Sensitivity:

1. 270M: -69dBm@10% PER
2. 130M: -69dBm@10% PER
3. 108M: -69dBm@10% PER
4. 54M: -69dBm@10% PER
5. 11M: -86Bm@8% PER
6. 6M: -89dBm@10% PER
7. 1M: -91dBm@8% PER

Transmit Power: < 20 dBm (EIRP)

Wireless Modes: Range Extender

Wireless Functions:

1. WMM (Wi-Fi Multimedia)
2. Wireless MAC Address Filtering
3. Wireless Statistic
4. Domain Login Function

Wireless Security:

1. 64/128/152-bit WEP
2. WPA-PSK /
3. WPA2-PSK

OTHERS

Certification: RoHS

Package Contents:

1. 300Mbps Wi-Fi Range Extender with AC Passthrough TL-WA860RE
2. RJ-45 Ethernet Cable
3. Quick Installation Guide

System Requirements: Microsoft? Windows? 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac? OS, NetWare?, UNIX? or Linux.

Environment:

• Operating Temperature: 0?C~40?C (32?F~104?F)
• Storage Temperature: -40?C~70?C (-40?F~158?F)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
