Triax SCS 2 – 2 way splitter (349802)

Description

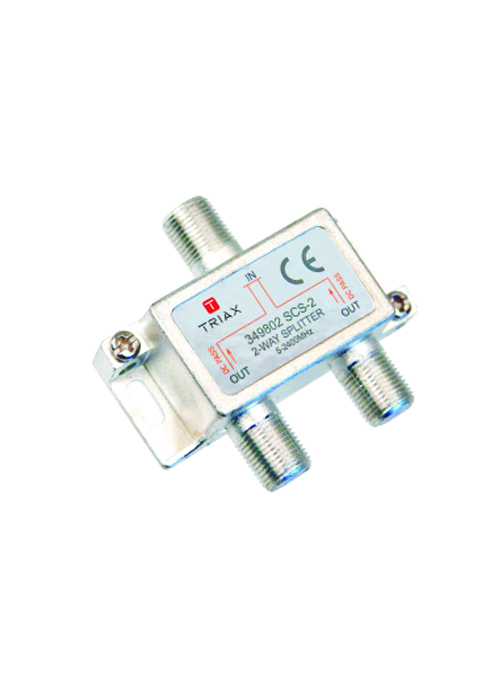

Triax SCS 2 – 2 way splitter

Brand Name: Triax

Part Number: 349802

Product Type: SCS 2 – 2 way splitter

Specification: Please Click here for Datasheet

Warranty: Manufacturer Standard Warranty.

Triax SCS 2 – 2 way splitter

Triax splitter ideal for SAT-IF and MATV distribution networks.

• Frequency range 5-2400 MHz
• High shielding
• Return loss Grade 3
• High quality die cast housing tin (Sn) coated
• to EN 50083-2 & EN 60728-4

TECHNICAL SPECIFICATIONS

Physical

Height(mm)  52 mm

Depth(mm)  16 mm

Width(mm)  53 mm

Connectors

Number of outputs  2

Connector type  F-connector

Frequency range  5-2400 MHz

Certification

EMC Class  A

Certification CE, RoHS II

Shielding

Shielding efficiency VHF/UHF  > 110 dB

Return Loss

Return loss (in-out) 5-40 MHz  11.5 dB

Return loss (in-out) 40-1000 MHz  15.0 dB

Return loss (in-out) 1000-2150 MHz  12.0 dB

Return loss (in-out) 2150-2400 MHz  11.0 dB

Insertion Loss

Insertion loss (in-out) 5-40 MHz  4.4 dB

Insertion loss (in-out) 40-1000 MHz  4.0 dB

Insertion loss (in-out) 1000-2150 MHz  5.5 dB

Insertion loss (in-out) 2150-2400 MHz  6.0 dB

Isolation

Isolation (tap-tap) 5-40 MHz  22 dB

Isolation (tap-tap) 40-1000 MHz  25 dB

Isolation(tap-tap) 1000-2150 MHz  24 dB

Isolation (tap-tap) 2150-2400 MHz  22 dB
